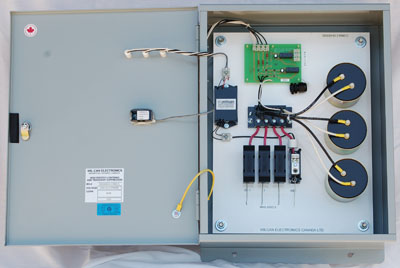

ENERGUARD III (120/208v) SD200HD-3-RM3-C


SD200HD SERIES
SD200HD SERIES
CAD5,326.10

The SD200HD series of surge suppressors are intended for use in large scale high risk applications. These heavy duty protectors are routinely used at radio and television transmitter sites, hospitals, airports, large manufacturing facilities and more. The SD200HD series is unrivalled for its effectiveness under extreme conditions in critical applications.
This unit will easily control all power surges internally or externally generated. The SD200HD series features a virtually instantaneous acquisition time and high humidity tolerance.


Features:
  • On Board Fusing
  • Front Panel Indicators
  • Remote Monitoring
  • Event Counter
  • Virtually istantaneous response time
  • High humidity tolerance
 Specifications:
  • Operating voltage..........120/208v - 3 phase
  • Current Clamp..........600 KA
  • Energy rating..........10200 Joules
  • 410 VP (290 RMS) @ 5 KA per line
  • 580 VP (410 RMS) @ 50 KA per line
  • Operating Temperature..........-40c to +85c
  • Dimensions 20 x 16 x 7 inches
